| SPECIFICATIONS | |||||
| Parameter | Description | Min | Max | Units | |

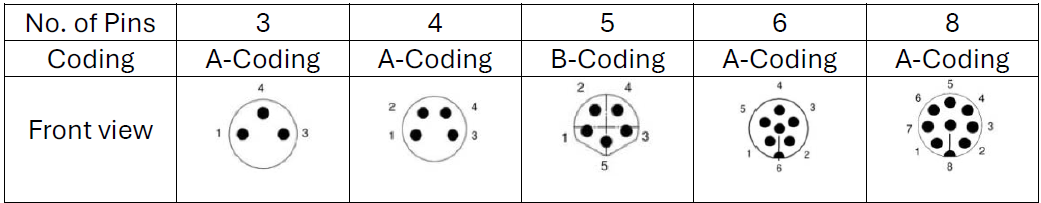

| Rated Voltage | 3,4 pin 5,6,8 pin |
60 30 |
V V |
||
| Rated Current | 3,4,5 pin 6,8 pin |
3 1.5 |
A A |
||
| Contact Resistance | 10 | mΩ | |||
| Insulation Resistance | 500V DC | 100 | MΩ | ||
| Mating Cycles | 100 | cycles | |||
| Operating Temerature | -25 | 85 | ℃ | ||
| IP Level | IP67 | ||||
| ROHS | Yes | ||||
| Safety Approvals | IEC61076-2-104 |
⚖️Comparison: Pros & Cons of M8 vs. M12 Circular Waterproof Connectors
| Feature | M8 Waterproof Connector | M12 Waterproof Connector |
|---|---|---|
| Compact Size | ✅ Ideal for tight spaces | ❌ Bulkier in size |
| Current/Voltage Capacity | Lower (mainly for signal use) | Higher, supports power and complex signals |
| Pin Count Options | Up to approx. 8 pins | Up to 17 pins, more options |
| Durability | Moderate (for light-duty applications) | High (suitable for harsh industrial environments) |
| IP Rating | Typically IP65–IP67 | Up to IP68 / IP69K (suitable for food-grade use) |
| Ease of Installation | Small, quick-connect | Larger, lockable and more stable |
| Cost | Relatively lower | Higher, but with comprehensive performance |
✅ Recommended Usage Scenarios
| Application Scenario | Recommended Connector |
|---|---|
| Space-constrained sensor devices | ✅ M8 |
| General I/O module connections | ✅ M12 |
| Industrial communications with multiple pins/power | ✅ M12 |
| Light-load, short-distance signal transmission | ✅ M8 |
| High durability and high pin count connections | ✅ M12 |
